WPOS-06
A Windows-based all-in-one POS terminal for retail and hospitality with a 15.6" Full HD touchscreen, J6412 quad-core 2.0 GHz processor, 8GB RAM and 256GB SSD. Configure the optional built-in printer, scanner and full-size customer display to match each deployment.
Your Software. Your Configuration.
Designed for restaurants, supermarkets and retailers, the WPOS-06 combines a familiar Windows platform with modular hardware and a modern counter presence.
Windows 11 Enterprise
Run your own Windows-based POS software on a J6412 quad-core 2.0 GHz platform with 8GB RAM and 256GB SSD storage.
Fully Modular Hardware
The printer, scanner and customer display are independent modules, allowing each system to be configured for the exact deployment.
Programmable LED Status Ring
Map RGB colors and lighting effects to transaction states in your own POS software for instant visual feedback across the counter.
Modular by design
The WPOS-06 is built around a fully modular architecture. The printer, scanner and customer display are independent modules, so you can configure each unit with exactly what the installation needs.
- Optional 58/80mm thermal printer with cutter
- Product scanner + payment scanner module
- Optional full-size customer-facing display
- Individual modules designed for quick service or replacement

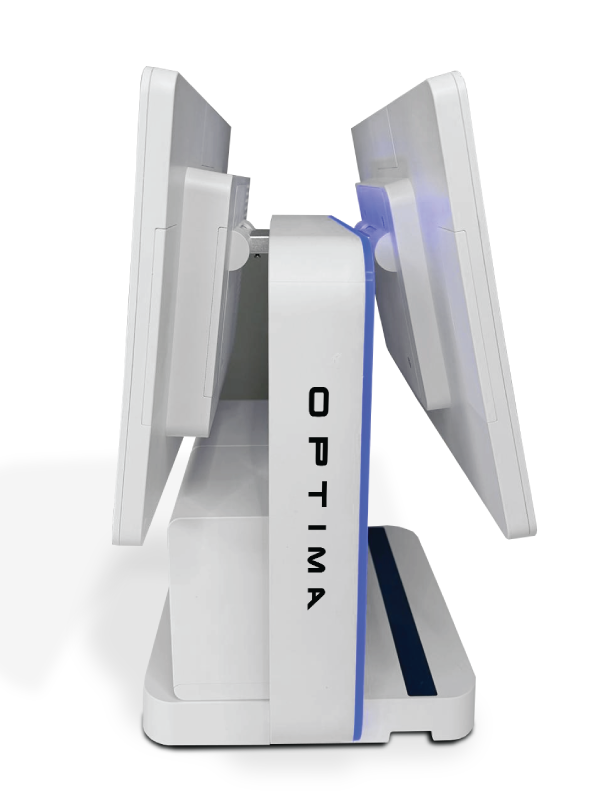

A smarter visual signal
The WPOS-06 is the first Windows-based terminal in the Optima lineup with a built-in, fully programmable LED Status Ring. Define the colors and effects that matter to your workflow and give staff and customers immediate visual feedback without adding separate indicator hardware.
- Red, green and blue primary colors
- Customizable color combinations
- Customizable lighting effects
- Controlled through your own POS application

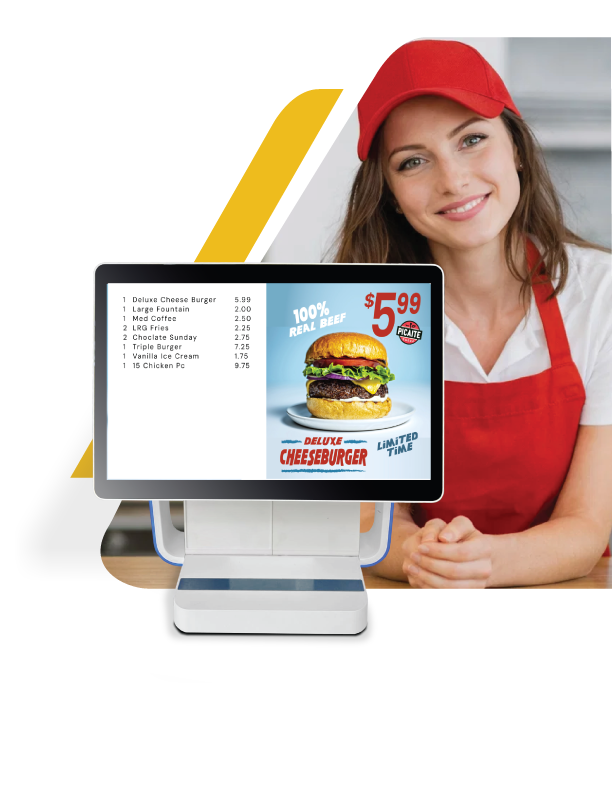

A real second screen
Add a full 15.6" 1920×1080p customer-facing display — not a scaled-down panel — and give your application room for transaction details, loyalty prompts or promotional content. Leave it off where a single-screen setup is all the installation requires.
Built to run your software
The WPOS-06 runs Windows 11 Enterprise, giving you the flexibility to deploy the Windows-based POS software your business already uses. The platform has been successfully tested with:
- Ideal POS
- Pixel Point
- Logivision
- Best
- SCPM
- Penny Lane
- Order Counter
- Odoo
- Visual Touch
- Universal POS
- Veloce
One terminal. Your software. Your brand.
The WPOS-06 keeps a clean, professional counter footprint while giving you control over what ships in each unit. Configure it lean or fully loaded — your software stays at the center of the experience.
Specifications
| Processor | J6412 Quad-core 2.0 GHz |
| RAM | 8GB standard |
| Storage | 256GB SSD |
| Power Supply | 13.8V 4.2A |
| Built-in Speaker | 5W |
| Main Display | 15.6" Touch Screen Display (1920 × 1080p) |
| Customer Display | Optional 15.6" Customer Display (1920 × 1080p) |
| Scanner Module | Product scanner + payment scanner |
| Printer Module | Optional 58/80mm thermal printer with cutter |
| Serial Ports | 2 — 1×RJ11* and 1×RJ12 |
| Cash Drawer | 1 × RJ12 |
| Ethernet | 1 × RJ45 |
| SD Card | 1 socket |
| Primary Colors | Red, green and blue |
| Customization | Customizable color combinations and lighting effects |
| Wi-Fi | Built in |
| Bluetooth | Built in |
| Operating System | Windows 11 Enterprise |
| Output | DC 24V 1.0A, 6-wire RJ12 |
Dimensions & Weight
14.7" L × 9.5" W × 19.6" H
16.3 lbs
