WPOS-05
A true all-in-one terminal with a large 15.6" touchscreen and a powerful J6412 quad-core 2.0GHz processor running Windows 11 Enterprise applications — integrated 3 1/8" thermal printer with auto cutter, Bluetooth & Wi-Fi, plus an optional 10.1" color customer display.
Windows Power. Sleek Design.
A refined POS terminal for medium and large commercial applications — supermarkets, larger restaurants and retailers — running the Windows POS software you already know.
Windows IoT 11
A powerful quad-core 2.0GHz processor ensures smooth operation of Windows 11 Enterprise applications.
Integrated Printer
The high-speed thermal printer is built fully into the chassis — a clutter-free counter with far less cable mess and fewer power bricks.
Connected Everywhere
Built-in Wi-Fi and Bluetooth, plus an optional 10.1" color customer display for transaction details and advertisements.

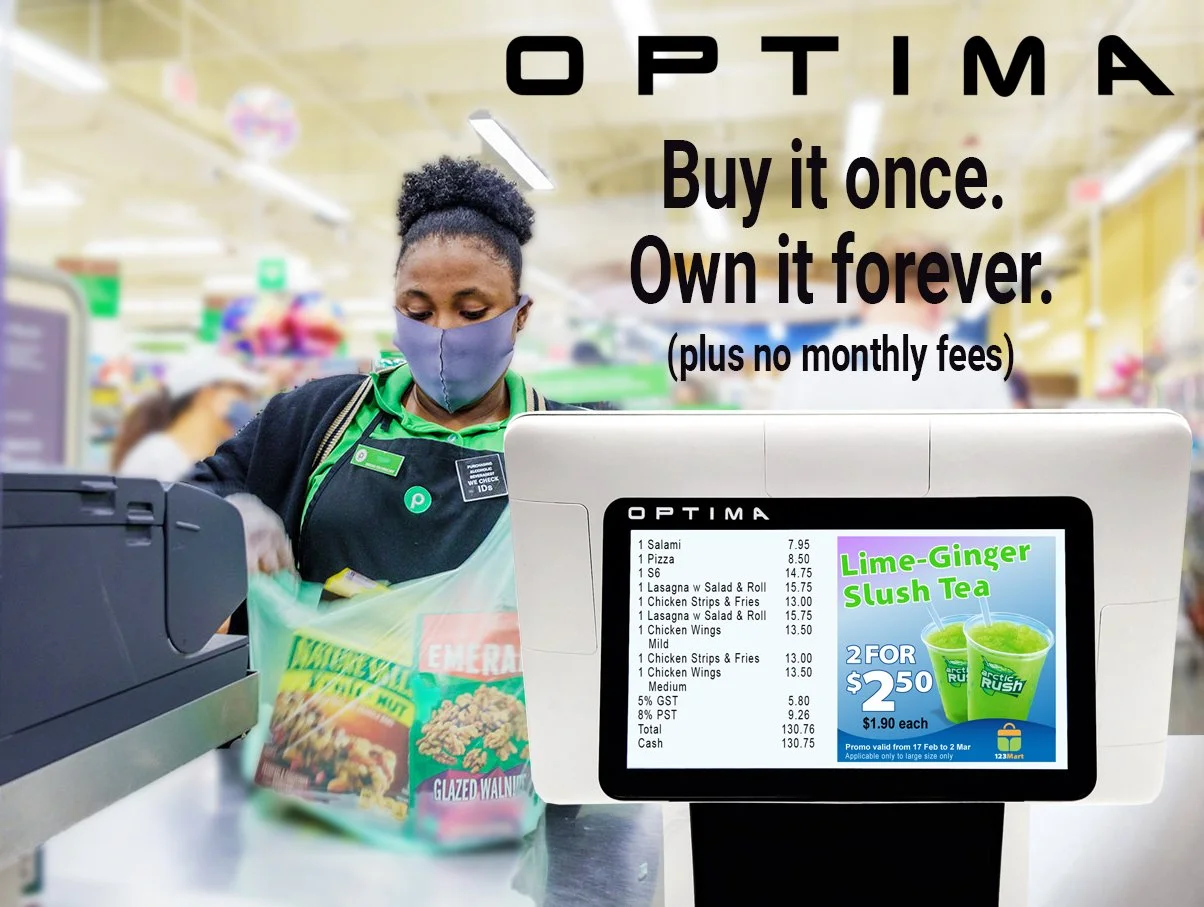

Clean counter. Less clutter.
The WPOS-05 features a remarkably clean, sleek aesthetic that elevates any checkout counter. Because the high-speed thermal printer is fully integrated into the chassis, you get a clutter-free workspace with significantly less cable mess — eliminating the extra power bricks and communication cables required by external peripherals.
An optional screen that sells
The optional 10.1" customer display presents transaction details and advertisements simultaneously. A vibrant color display captures attention, keeps customers informed and engaged, and is positioned on the rear for a perfect customer-facing view.

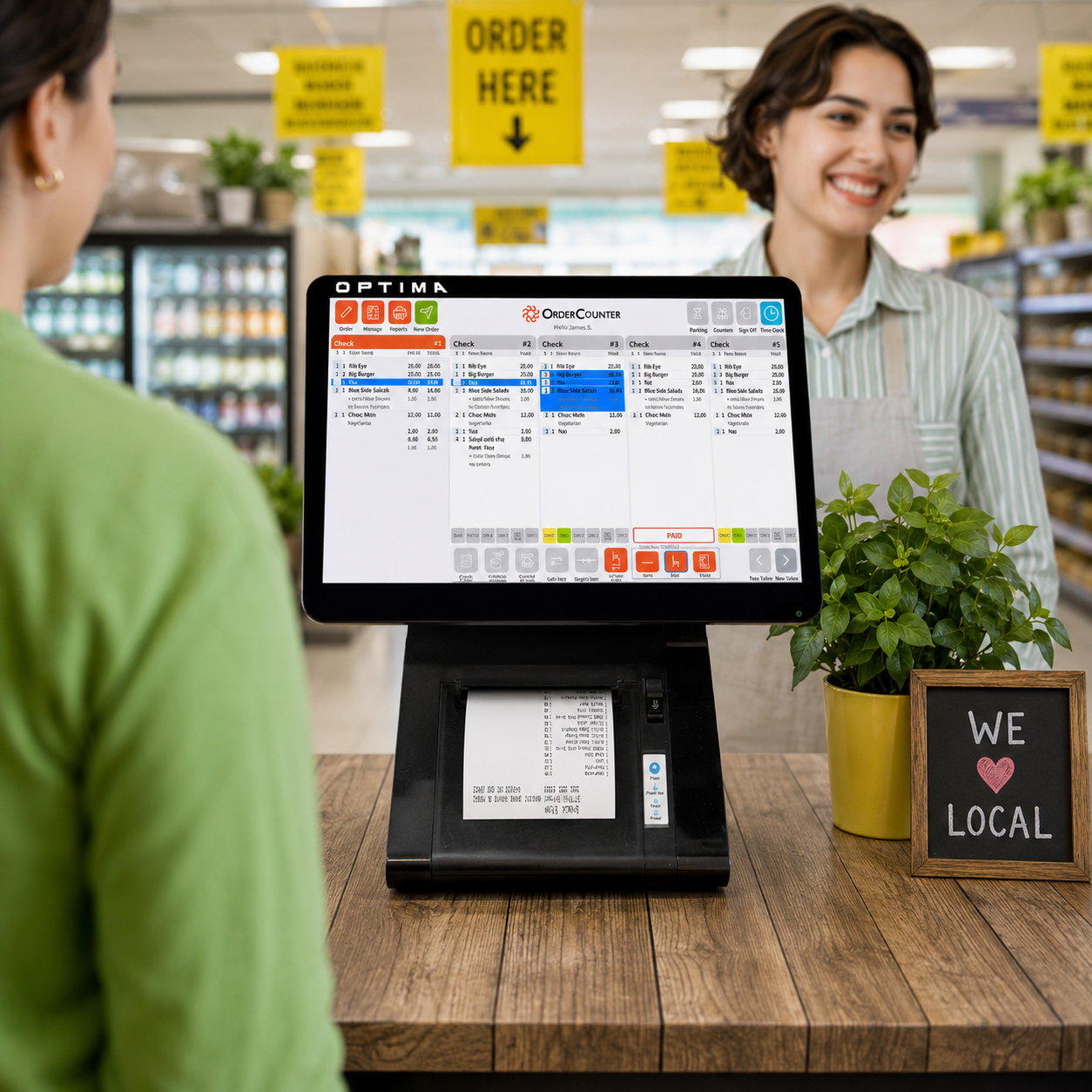

Run the POS software you know
Because the WPOS-05 runs Windows, you're free to use your preferred Windows-based POS software. It's been successfully tested with a wide range of industry platforms:
- Ideal POS
- Pixel Point
- Logivision
- Best
- SCPM
- Penny Lane
- Order Counter

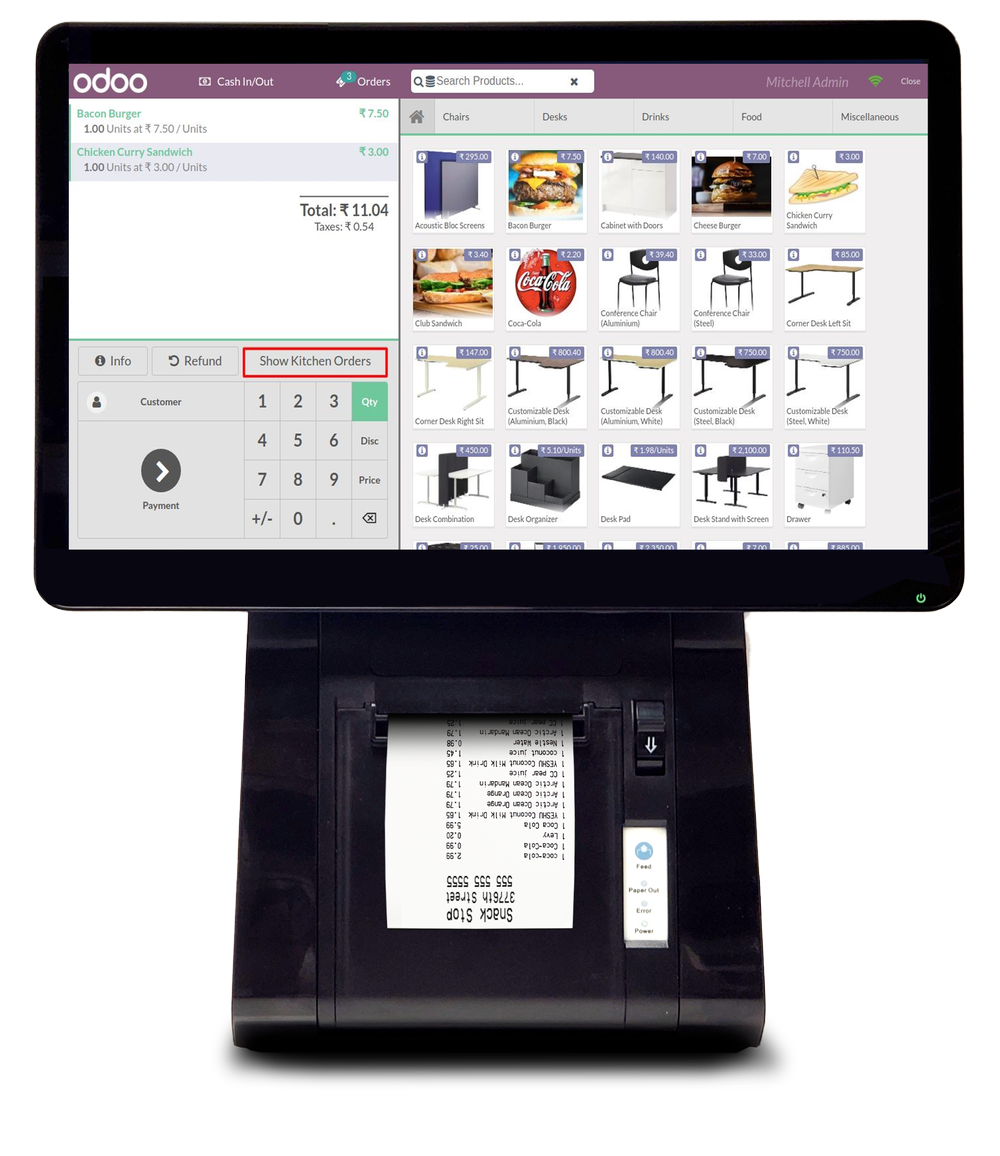

- Odoo
- Visual Touch
- Universal POS
- Veloce
For every kind of business
Hospitality, retail outlets, food markets, coffee shops, restaurants, liquor stores, convenience stores and much more — the WPOS-05 fits right in.
Specifications
| CPU | J6412 Quad-core 2.0GHz |
| RAM | 8GB |
| HDD | 256GB SSD |
| Power Supply | 12V 5A |
| Operating System | Windows IoT 11 |
| Operation Display | 15.6" (1920 × 1080p) |
| Customer Display (optional) | 10.1" (1024 × 600) Color |
| Touch Panel | Capacitive touch screen |
| External USB Display Options | OPT-EPD-7 (7" Remote Pole Display) · OPT-EPD-10 (10" Remote Pole Display) |
| USB 2.0 | 4 |
| Serial Port | 2 |
| Cash Drawer | 1 |
| Ethernet | 1 |
| Wi-Fi | IEEE 802.11 b/g/n/d/e/h/i |
| Bluetooth | V2.1+EDR / BT v3.0 / BT v3.0+HS / BT v4.2 |
| Scanner | 1D & 2D scanning supported |
| Thermal Printer | 3 1/8" with cutter (80mm × 80mm) |
| Printing Speed | 150mm/s |
Dimensions
373mm(L) × 241mm(W) × 498mm(H)
7.4 Kg
