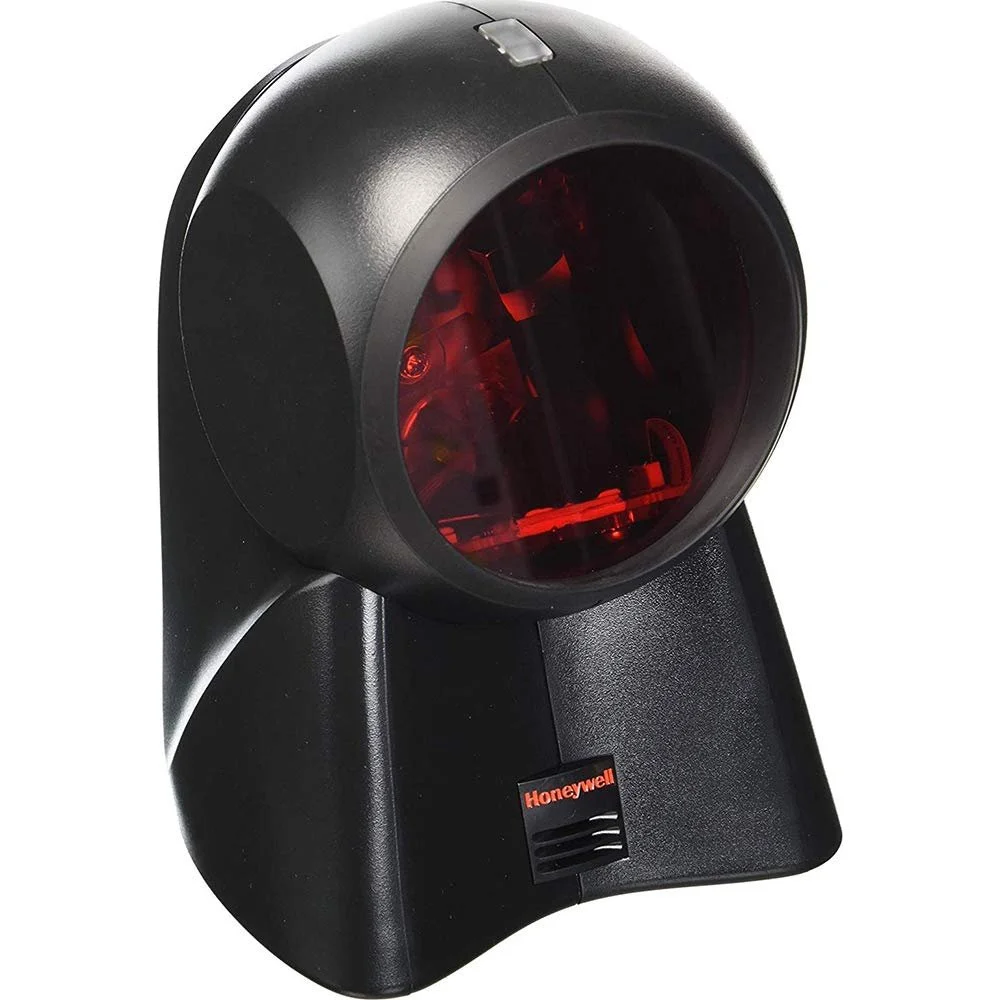

Honeywell MS7120
Omnidirectional Laser Scanner
Hands Free with Auto Scanning
Honeywell's Orbit• MS720 provides aggressive omni-directional scanning in an award-winning design for retailers seeking an affordable, aesthetically pleasing scanning solution. Orbit, the all-time, best-selling hands-free omnidirectional scanner, presents an innovative, elegant, and affordable solution for convenience retail applications where counter space is at a premium.
Superior Performance
Compact, lightweight, and rugged, Orbit maximizes customer satisfaction and employee efficiency with a patented 20-line scan pattern, an easy-to find sweet spot and a scan speed of 1,120 scans per second. Recipient of multiple design honors, Orbit's award-winning shape enables hand-held scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.
For applications that require menu scanning, Orbit MS7120 combines the power of patented CodeGate• technology with many of the outstanding features already found in the Orbit• MS7120. CodeGate technology allows the user to easily target the desired bar code and complete data transmission with the push of a single button.
Ergonomic Design
The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet• 2 configuration software safeguards long term infrastructure commitments in the event of a change in the POS system or software. Standard features include an integrated EAS antenna for tag deactivation , power save mode, user-replaceable cables, Honeywell's patented MetroSelect and MetroSet• 2 for easy configuration, data editing and OPOS/JPOS compatibility for easy installation.
Key Features
20 Scan Line Omnidirectional Pattern: Provides
aggressive scanning as an additional benefit to hand
presentation applications
Sweet Spot Scanning: Engineered "sweet spot" to
optimize scan performance and first pass read rate
Adjustable Scan Head: Ability to tilt scanner 30° for
targeted scanning or larger products
Flash ROM: Protects POS investment with free firmware
updates via MetroSet • 2 software and standard PC
Automatic Scanning Operation: Simply present a bar
code and the unit scans in a single pass
Built-in RF EAS Antenna : Increases efficacy by simultaneously deactivating RF EAS tags and decoding bar codes
Scan
Light Levels: 4842 Lux
Scan Pattern: Omnidirectional: 5 fields of 4 parallel lines; button activated single line
Scan Speed: Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second
Print Contrast: 35% minimum reflectance difference
Pitch, Skew: 60°, 60°
Decode Capability: Reads standard 1D and GS1 DataBar symbologies
I/0 Connectivity
Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation
General
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.2 m (4´) drops
Environmental Sealing: Sealed to resist airborne particulate contaminants
Input Voltage: 5 VDC ± 0.25 V
Operating Power: 900 mW (180 mA @ 5 V)
Standby Power: 850 mW (170mA @ 5 V)
Dimensions: (LxWxH): 105 mm x 102 mm x 150 mm (4.1˝ x 4.0˝ x 5.9˝)
Weight: 400 g (14.1 oz)
